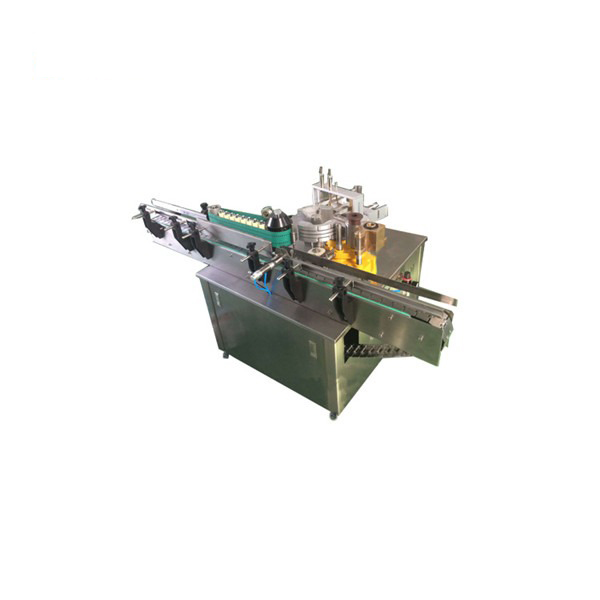

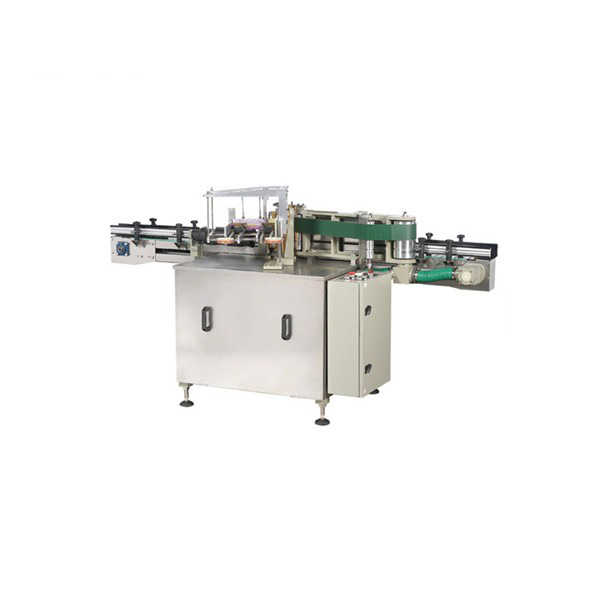

Automatic Bottle Wet Glue Labeling Machine
Automatic Bottle Wet Glue Labeling Machine is produced by VKPAK, special for the paper label for round bottle ,cans , jars by wet/cold glue, the glue is the resin glue.
Automatic Bottle Glue Labeling Machine is designed by for the paper label for the Cans , Jars , Bottle and any kinds of round container. The customer load paper labels into label box , and the wet glue is the resin glue. It is mianly for the Food , Chemical industry. Full Automatic Wet Glue Bottle Labeling Machine/Laber.
Advantages:
- Operation: Wet glue labeling machine label box can be changed according to the different label size
- Material: Glue labeling machine is made of SUS304 stainless steel
- Configuration: Wet glue labeling machine adopt well known Japanese, German, American, Korean or Taiwan brand parts
Description
Automatic Bottle Wet Glue Labeling Machine automatically labels round container of glass, plastic, aluminum, pet, cardboard container, will wrap-around labels in the vertical position by using cold glue. The machine is rigid, versatile and engineered for reliability and enhance operational efficiency in addition, it has several exclusive features which offer additional advantages.
1, Wet glue labeling machine adopt mature PLC control system
2, glue labeling machine include the conveyor, paste the label on the bottle by glue
3, Wet glue labeling machine is used widely for the labeling of the round object in such industries as food, medicine, daily chemical and so on.
Packaging Type: Bottles
Packaging Material: Wood
Type: Labeling Machine
Condition: New
After-sales Service Provided: Online support, Video technical support, Free Spare Parts, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin: Shanghai, China
Brand Name: VKPAK
Voltage: 220V 50HZ
Application: Apparel, Chemical, Commodity, Food, Machinery & Hardware
Weight: 280KG
Automatic Grade: Automatic
Driven Type: Pneumatic
Dimension(L*W*H): 2400mm*1000mm*1600mm
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
Name: Cold Wet Glue Labeling Machine for Round Jars
Product name: Automatic wet glue labeling machine
Usage: paper Labels Bottles
Labeling speed: 50-120pcs/min
Model: VK-WGL
Material: 304/316 Stainless Steel
Advantage: Economy Labeling Machine
Function: Auto paper Labeling Equipment
Other name: Automatic paper Label Counter
warranty: 12 months
Technical Parameter
| Model | VK-WGL Bottle Glue Labeling Machine |
| DRIVE | Shift motor driven |
| BOTTLE DIAMETER | Ф55-110mm |
| BOTTLE HEIGHT | 60—450mm |
| LABELING SPEED | 50-120pcs/min |
| LABEL SIZE | Width:20-220mm Length:80-320mm |
| PRECISION | ±1mm |
| MACHINE SIZE | 2400*824*1100mm |
| WEIGHT | 750kg |
| POWER | AC 220V/380V 50/60HZ 750W |
Operation

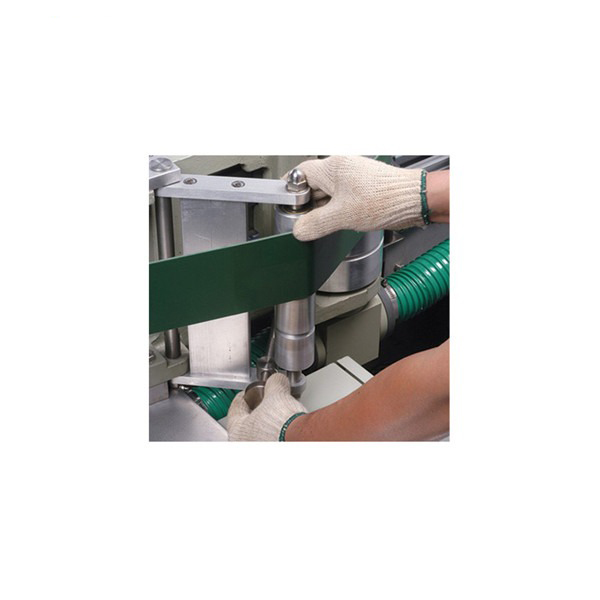

The round containers positioned accurately by the feed worm for wrap-around operation at the labeling point, the rotating glue cylinder receives cold glue from gluepot that subsequently gets transferred on the Glue Rubber Roller. Finally a fine, even and thin film of glue is transferred to the gluing pad. The round container on the moving conveyor at the feed worm actuates a sequence, which result in the oscillation of the Label Box. The rotating label master aligned with the help of pick up fingers f rom the label master & with oscillating label box. The pick up cylinder receives labels with the help of pick up fingers from the label master. The pick up cylinder holds the labels perfectly with due to vacuum during its rotational movement. Simultaneously the pick-up fingers move inside, The round container moves on conveyor with the help of worm and glued label on pick-up cylinder wrapped around to container by virtue of strip belts.Then the labeled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of label.

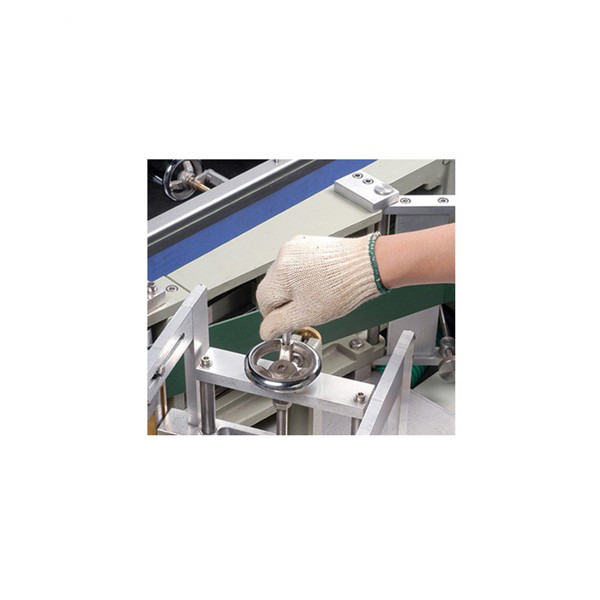

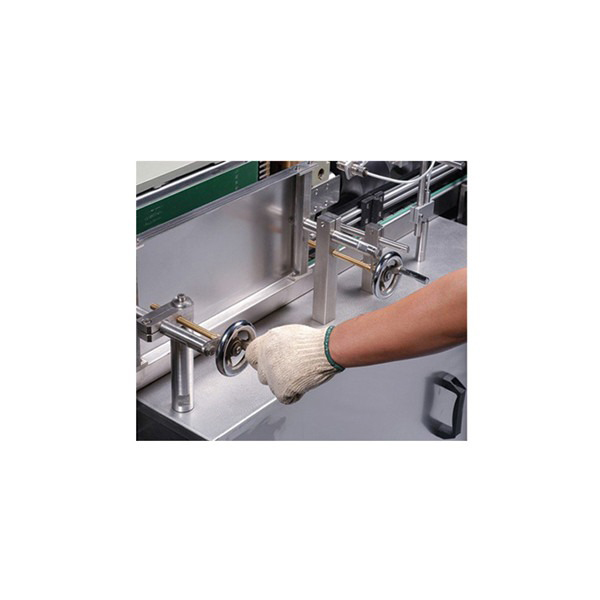

Detail Images
Main Features:

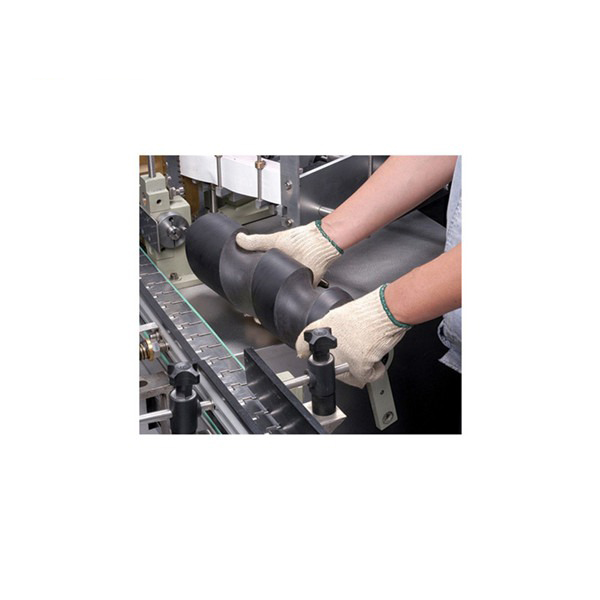

- Based on screw bottle entering bottles moving are steadier.
- Label box can be controlled to satisfy different labeling request.
- The size of label box can be changed according to the different label size. The operation is convenient and easy.
- It uses the glue pump and the glue can be used circularly. Quantity of flowing glue also can be changed to satisfy different labeling request.
- Compare to self adhesive labels, Paper label make a low cost.
This PLC-controlled automatic glue labeling machine is designed with French technology and its main parts and components are of Taiwan brand or imported from foreign countries, featuring reasonable design, harmonious movement and high reliability. It can stick single sheet or double sheet of non-setting adhesive label of different sizes conveniently onto various specifications of round bottles.
If you have unique labeling equipment requirements, we can customize our machinery to accommodate your product(s) and even work with your existing packaging line. Once our lab evaluates your product(s), our experienced staff will discuss the wide range of equipment options available. Then we will consult with you to determine what machinery best suits your needs and budget.
