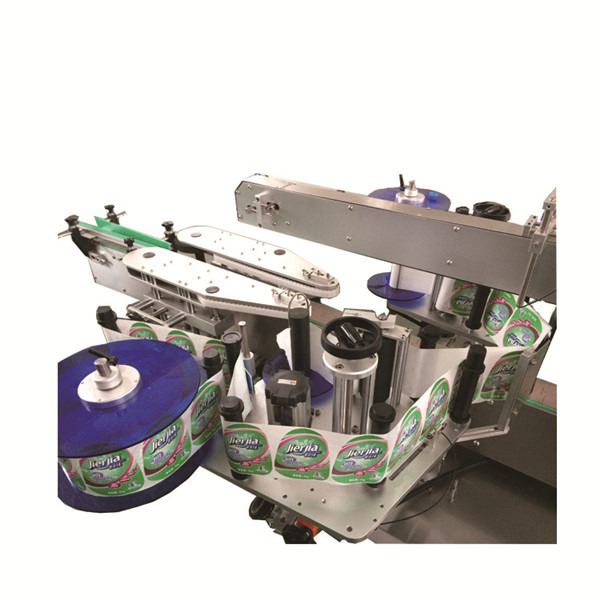

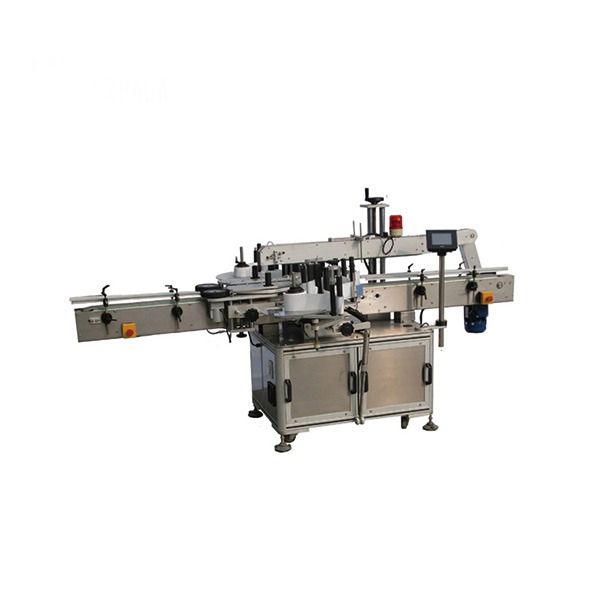

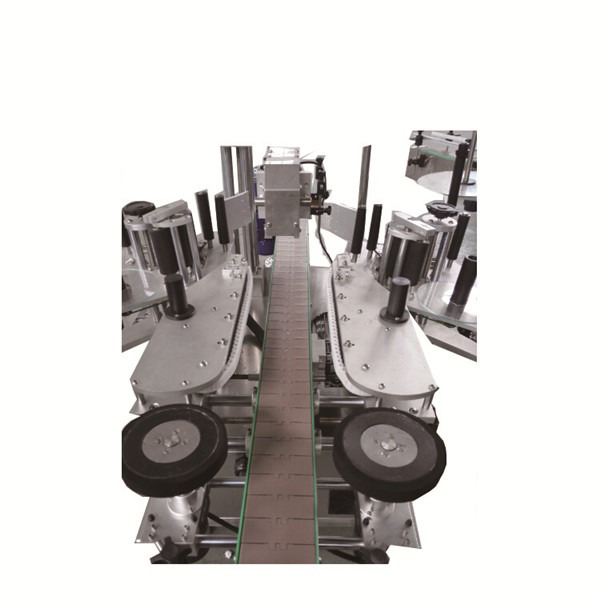

Automatic Flat Bottle Labeling Machine
This Automatic Flat Bottle Labeling Machine can seperate the bottle , one motor drive contorl the press bottle device and conveyor , the bottle will be linear moving on the conveyor . Servo motor , PLC and Touch screen will be high label.
This Automatic Flat Bottle Labeling Machine can seperate the bottle , one motor drive contorl the press bottle device and conveyor , the bottle will be linear moving on the conveyor . Servo motor , PLC and Touch screen will be high label.
Automatic Flat Bottle Labeling Machine is designed on the base of two sides for the flat bottle , square bottle. In order to meet some of customer to meet the requirements of label two sides and round bottles. it is medicine, daily chemical, food cultural supplies, Electronic and etc. This machine is control the servo motor and PLC and touch screen , it is multi-sticker/adhesive labeling machine
Description
The flat sticker labeling machine is utilized to label one side of the flat containers; or full and partial wrap around labels on various dimensions of other containers. This robust machine has a smooth stainless steel finish, which also includes the mainframe. It is the most user friendly equipment, with a capacity of labeling 30 to 350 units per minute; as per the size of the product and label. The speed also depends on the stable movement of the container on the machine conveyor at a higher speed. This sophisticated and simple model has the latest belt spacing device that results in a no parts change system, even if the size of the containers and labels is changed. Moreover, the machine includes an advanced and distinct single point control system for online speed variation. Further, this versatile and precise equipment is reputed for its high label placement accuracy. It also incorporates an integrated A.C. frequency drive system.
Packaging Type: Bottles
Packaging Material: Metal
Type: Labeling Machine, Labeling Machine
Condition: New
After-sales Service Provided: Online support, Video technical support, Free Spare Parts, Field installation, commissioning and training
Place of Origin: Shanghai, China
Brand Name: VKPAK
Voltage: 220V 50/60HZ
Application: Apparel, Beverage, Chemical, Food, Medical
Weight: 200kg
Automatic Grade: Automatic
Driven Type: Mechanical
Dimension(L*W*H): 1800mm*1000mm*1300mm
Function: sticker label on the bottle
Labeling speed: 20-100bottle /min
Motor: servo motor
Machine name: applying label machine
Material: Stainless Steel
warranty: 1 year
labeling accuracy: 1mm
Service: 24/7 Technical Support
packing: Long Distance Wooden Case
Technical Parameter
| Name | Automatic Flat Bottle Labeling Machine |
| Labeling Speed | 60-350pcs/min(Depending on label length and bottle thickness) |
| Height of Object | 30-350mm |
| Thickness of Object | 20-120mm |
| Height of Label | 15-140mm |
| Length of Label | 25-300mm |
| Label Roller Inside Diameter | 76mm |
| Label Roller Outside Diameter | 420mm |
| Accuracy of Labeling | ±1mm |
| Power Supply | 220V 50/60HZ 3.5KW Single-phase |
| Gas Consumption of Printer | 5Kg/cm^2 |
| Size of Labeling Machine | 2800(L)×1650(W)×1500(H)mm |
| Weight of Labeling Machine | 450Kg |
Main Features:
- PLC and touch screen, servo motor
- Equipped with warning device of insufficient labels, broken labels
- No bottle, no labeling
- No labels , no labeling and automatic warning
- No Ribbon, automatic warning
- Servo motor control, stable labeling.
- Label sensor and electrical parts are made in Japan
- Suitable for the round /flat /square bottle
The machine can use labels with a minimum length of 12 mm and a height that ranges from 8 mm to 70/90/120/150 mm. Usually the roll diameter is 300 mm and the core diameter is 75 mm. Whereas the gap between the two labels is approximately 3 mm. Further, it has a built-in automatic label length detecting system that eliminates the system of manually feeding and storing the details of the label length into the memory and retrieving the same data when the label size is changed and the machine is restarted. This modern system saves overall cost, precious time, avoids machine down time, and enables to achieve higher productivity. This model is available with an optional sturdy glass or acrylic safety cabinet. Actually it fulfils all the basic needs of the typical machine required in the current market.
