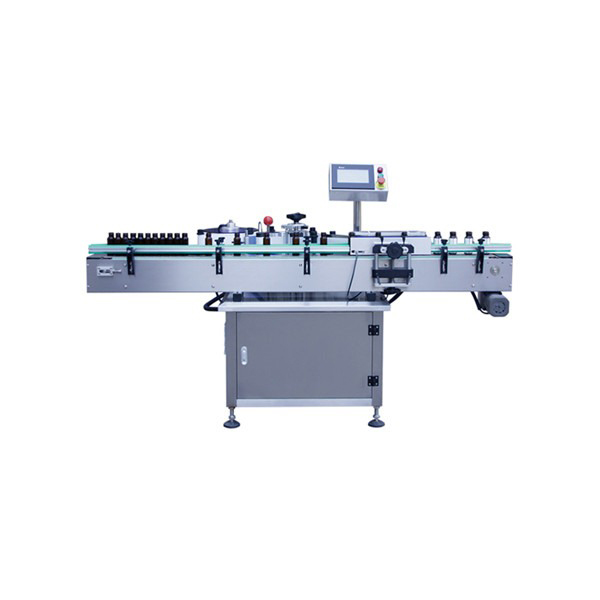

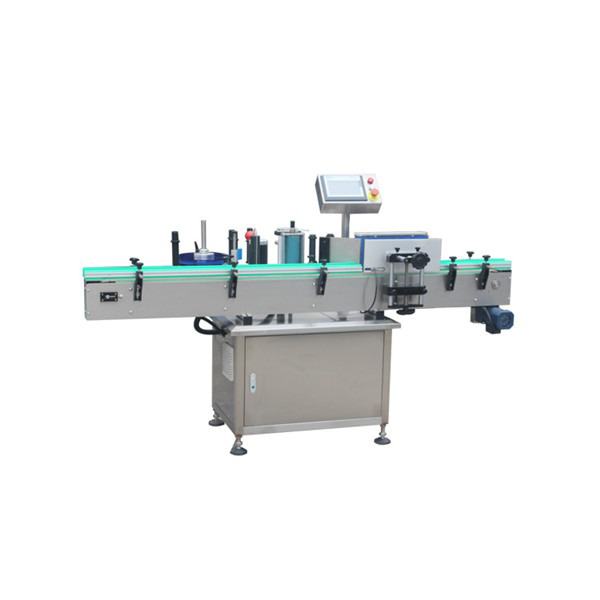

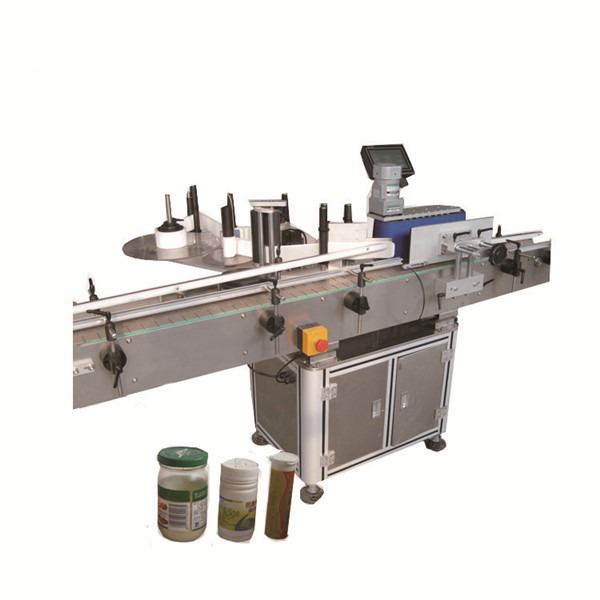

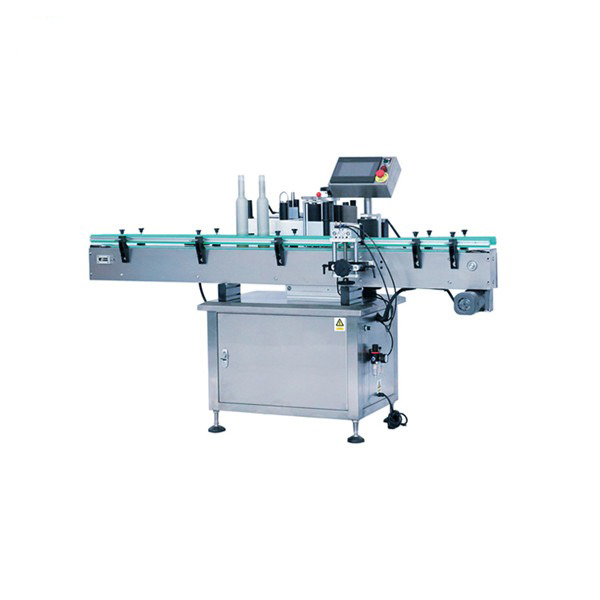

Automatic Round Bottle Sticker Labeling Machine
VK-VRL Automatic round bottle labeling machine also called vertical labeling machine, it is application for labelling a range of round bottles. VKPAK is Automatic Sticker Labeling Machine is one of the most users friendly machines. The machine is used for full/partial wrap around labeling on different size of round container. It is capable of labeling up to 150 containers per minutes depending on products and label size. The automatic model is equipped with roller spacing device resulting in a simple to "No change parts required".
Applications
Our labeler Machines are widely used in Pharma Syrup, Dry Syrup, Honey, Edible Oil, Lubricant Oil, Hair Oil, Shampoo, Phenol, Fruit Juice, Ready to Drink Juice, Cosmetics, Talcum Powder, Bleach Powder, Herbal Powder, Ayurveda Powder, Wine, Liquor, Electrical Components, Dental Products, Adhesive, Glue, Rubber Adhesive, Stationery, LIP Balm, Petroleum Jelly, Hair Developer, Hair Straightener, Hand Wash, Dish Wash, Hand Sanitizer, Cosmetic Lotion, Hair Wash, etc.
Description
The bottle sticker labeling machine is manufactured with accurate precision and sturdiness including a product transmission system, label dispenser unit, wrapping unit, programmable logic control panel, electric panel and other advanced features designed to deliver efficiency and effectiveness in the production process. All safety elements of the machine have been considered including covering of all the moving parts.
The conveying system is easily adjustable as per the product requirements. This system is also equipped with strong AC variable drive that delivers the required torque during operation. An innovative motorized system ensures a uniform distance from one product to the other. The makeup components of this equipment have been sourced from high quality manufacturers to guarantee durability and minimum maintenance.
Advantages
- Stable-Adapt Siemens PLC control and Panasonic servo motor Driven label for machine working stably and label accuracy. It is high performance and high efficiency.
- Easy Operation-The touch screen can be in English, Spanish, French, Russia and any other language. It is easy operation and can be connect with other machines for production packaging line.
- High precision-Accuracy from +-0.5-1mm. wide application range-Widely using the bottle diameter from 25mm to 120mm, bottle heigh 25mm. to 300mm,If customized height of 10mm-150mm,length of 15mm-300mm, please kindly ask us.
- High speed-Speed max can reach 150bottles per min subject to the label size and bottle size.
- Europe standard-The labeling machine is made according to CE standard, Taiwan technology.
Packaging Type: Bottles
Packaging Material: Wood
Type: Labeling Machine
Condition: New
After-sales Service Provided: Online support, Video technical support, Free Spare Parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin: Shanghai, China
Brand Name: VKPAK
Voltage: 220V/380V
Application: Beverage, Chemical, Food, Machinery & Hardware, Medical
Weight: 200kg
Automatic Grade: Automatic
Driven Type: Electric
Dimension(L*W*H): 2100*1150*1300mm
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Name: Round Bottle Sticker bottle labeling machine
Material: SUS304
Labeling speed: 60-200pcs/min
Advantage: Economy
Labeling accuracy: 1.0mm
Function: Ahesive Sticker Labeling
Bottle type: Round Bottles
Speed: 60-200pcs/min
Technical Parameter
| Model / technical parameters | VK-VRL |
| Labeling speed (pcs/min) | 40-100(relate to material and label size) |
| Labeling accuracy(mm) | ±1.0mm(material and label sizes are not counted in) |
| Label size(mm) | (L)20-280mm (H)30-144mm |
| Material size (mm) | Φ20-φ100mm (H)40-200mm |
| Roll inside(mm) | φ76mm |
| Roll outer diameter(mm) | Max:Φ350mm |
| Machine size (mm) | (L)2000*(W)850*(H)1450(mm) |
| Power supply | AC220V 50Hz/60Hz 1500W |
Working process of round bottles labeling machine
- Manually put bottles on conveyor or using a automatic botte turntable and the bottles will be separated by bottle separator to keep the each bottle distance for guarantee the working stable
- All the action are control by PLC, Automatic sense the bottle and labels, automatic apply the labels on the two sides of the bottles. And machine with function, no bottle no labeling, automatic warning if no label or lack of labels
- After apply the labels on bottles, the label paste device will paste the labels to fasten the label on bottles.
- Then bottle go to next processing.
Configuration Parts
| Item | Description | Quantity | Remark |
| 1 | PLC | 1 | Siemens Made In German |
| 2 | Touch Screen | 1 | Siemens Made In German |
| 3 | Transducer | 1 | Delta Made in Taiwan |
| 4 | DC24V Electrical Source | 1 | Delta Made In Taiwan |
| 5 | Checking Label Sensor | 1 | Leuze Made in German |
| 6 | Checking bottle Sensor | 1 | Keyence Made in Japan |
| 7 | Optical | 1 | Keyence Made in Japan |
| 8 | STEP MOTOR AND DRIVER | 1 | INVONATION SHENGZHEN |
| 9 | SWITCH | 1 | SCHNIDER FRANCE |
| 10 | Emergency Switch | 1 | SCHNIDER FRANCE |
| 1 year free spare parts | ||
| 1 | wearing belts | 2pcs |
| 2 | tools | 1 set |

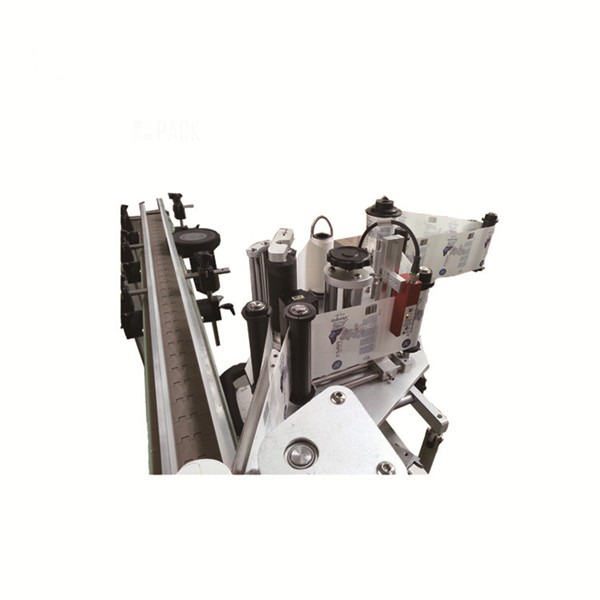

Detail Images
Main Features:

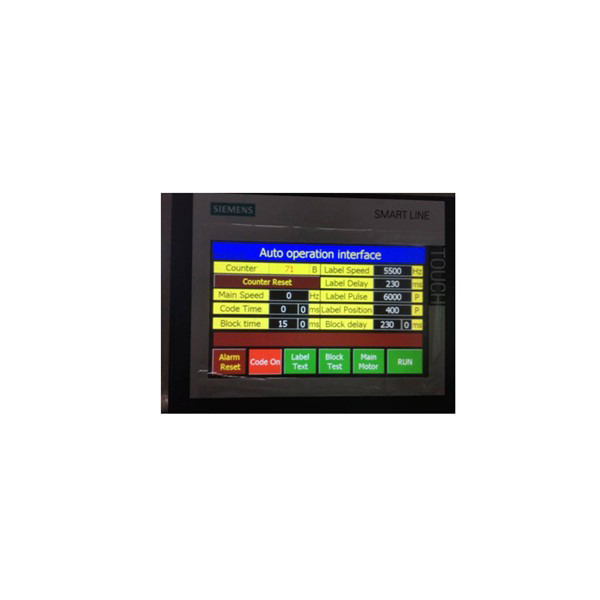

- 1. Touch screen and PLC control
- 2. Around 30 memory recipes for labeling parameters easy for change bottle size.
- 3. Low or missing label detect.
- 4. Synchronized speed selection
- 5. Servo motor drive for high accuracy and high speed
- 6. No bottle no labeling.
- 7.Fixing hot foil coding machine , which can print EXP MFG BATCH on the label
Being involved in the production industry can never be an easy task. Either you are in food production or cosmetic industry or if in any other manufacturing industry, you have to follow a certain procedure which includes labelling of the product as well. Labelling is an important step because it identifies the product. The name tag shares a lot of information about the product. Labelling conveys the information of the product and ingredient or component involved in making of it.
Special kind of device that is bottle sticker labelers is employed to label the bottles present in bulk quantities.
Why labeling machine?
Labeling in bulk: sticker Labelling machine can do labelling of product present in bulk quantity without any kind of error.
Less time consumption: If someone depends on the manpower for the labelling of bottles then it would take more time in comparison to the labelling done by labelling machine.
Saves money: Well, hiring an employee for the labelling of bottles would be costly. The sticker bottle labelling machine saves money and time both.
Operation
The round containers positioned & curate spacing between two containers by the roller spacing device for wrap-around operation at the operation at the labeling point, an electronics product sensor sense container & relies a label from self adhesive label roll. If machine is equipped with batch printing device in that case batch printing device prints the batch no. & other matter on label during label is stationary means time between sensing of two label. The sensed round container moves on conveyor sticker label at labeling point wrapped around to container. Then the labeled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of label.
