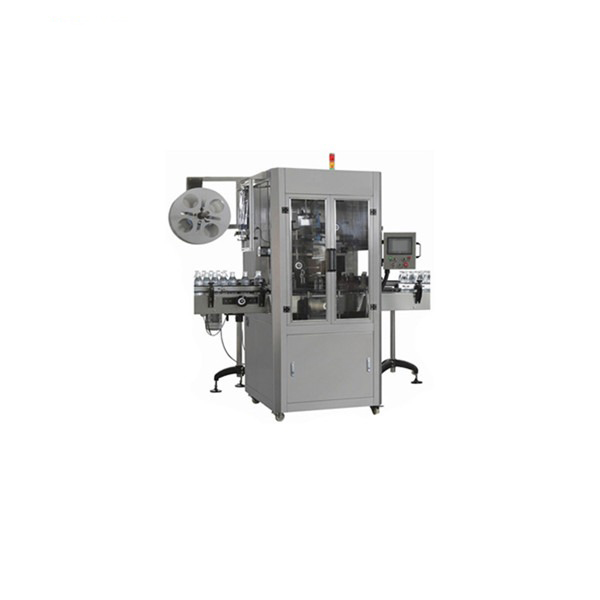

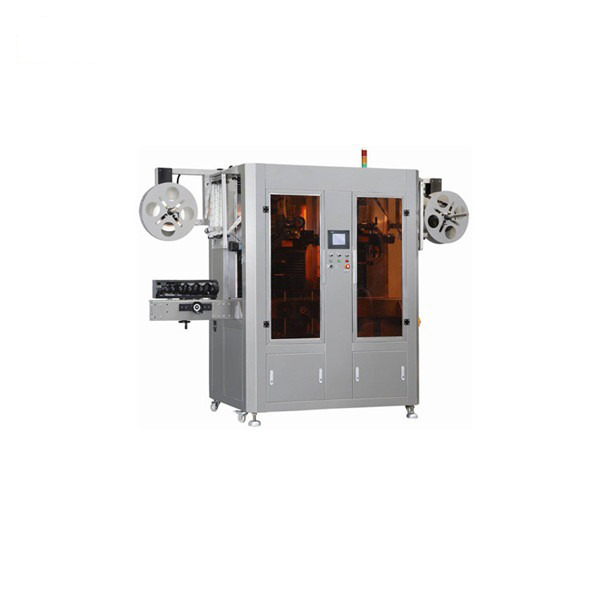

Automatic Shrink Sleeve Labeling Machine

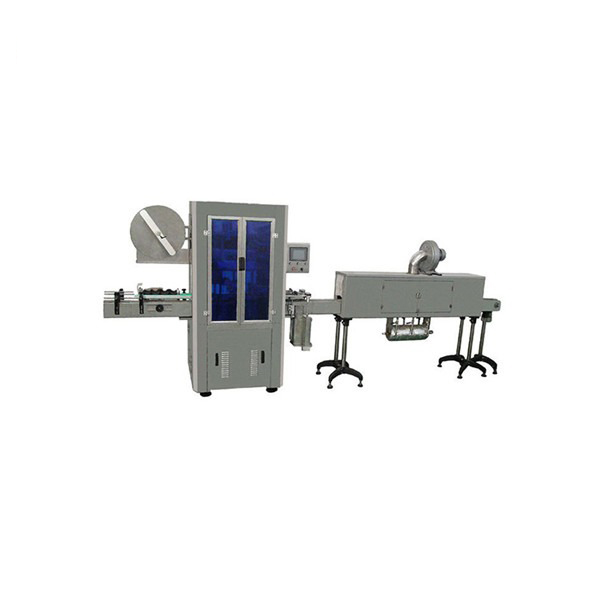

Automatic Bottle Sleeving Labeling Machine is produced by VKPAK, Automatic Bottle Sleeve Labeling Machine with Steam tunnel and Steam Generator, adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; it adopts the positioning mould to ensure the casting label precise, rapid and stable.

Automatic Bottle Sleeving Labeling Machine is design for the inserting PVC label on the drinking bottle with steam shrinking tunnel and electrical heating tunnel.

Advantages:

Motor to up and down which enable the operation more convenient.
It is easy to change the central clamping device without any tools.
Oriental rolling label device can be lifting synchronal.
The separating bottle screw, oriental belt and conveyor are adjusted synchronal.

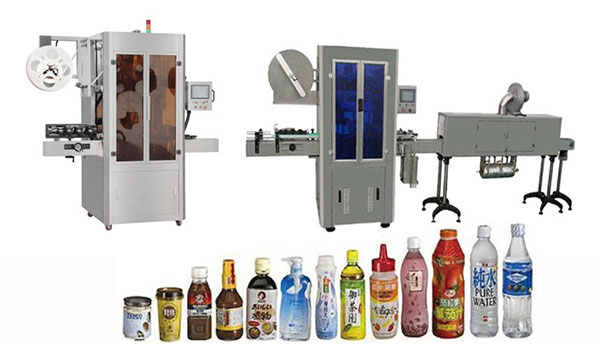

Automatic sleeve labeling machine is suitable for kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped.

Our shrink sleeve labeling machines series use the newest shrink technology with large control touch screen. The humanize operation, the mainframe can be easy adjusted up and down with automatically. The labeling machine has been accurately designed, even use this machine with high speed for a long time, machine running is still very stable and smoothly.

We have many models with all kind of speed selection from 100/minute to 150/minute and is suitable for wide range, it can be modified according to the package’s shape. We always can meet your all kind of requirement no matter it is for cap or bottle. The machine is suitable for pharmaceutical, food industries, health-food, medicine, juice, milk, drink...etc.

Warranty: 1 Year
Packaging Material: Wood
Type: Labeling Machine
Condition: New
After-sales Service Provided: Online support, Video technical support, Free Spare Parts, Field installation, commissioning and training, Overseas service center available
Place of Origin: Shanghai, China
Brand Name: VKPAK
Voltage: 3,380/220VAC
Application: Beverage
Weight: 300kg
Automatic Grade: Automatic
Certification: CE Certificate

Driven Type: Electric
Dimension(L*W*H): L2100mm *W850mm *H2000mm
Applicable Industries: Manufacturing Plant, Construction works
Product name: Auto Shrink Sleeve Labeling Machine
Bottle type: Round Square Flat Pet Bottle
Usage: Sleeve Label
Function: PVC Shrink Sleeve Label Cutting Machine
Labeling speed: 100-150(Bottle/min)
Material: 304/316 Stainless Steel
Advantage: Widely Used
Model: VK-SSL
warranty: 12 months

Name	Automatic Bottle Sleeving Labeling Machine
Capacity	6000-9000 bph (500 ml bottle)
FPY	≥99.9%
Whole line productive efficiency	≥95%(Calculation of 24 hours）
Applicable diameter of bottle	28mm-120mm
Applicable length of label	30mm ～250mm
Applicable thickness of label	0.027mm ～0.13mm
Label material	PVC、PET、OPS
Volume label inside diameter	≥4"(101.6mm)
Volume label outside diameter	≤500mm
Voltage	AC380V, 50/60HZ, three phase
Label sleeving machine output	1.5KW-2KW
Steam Shrink tunnel output	0.37KW
Steam pressure	1-8Kg／cm2
Steam air consumption	<25Kg／hour
Dimension of the machine	Label sleeving machine: L2100W850H2000 mm
Weight	500 kg

The new style cutting knife droved by servo motor, with high speed, more stable and precise, shrinks perfectively

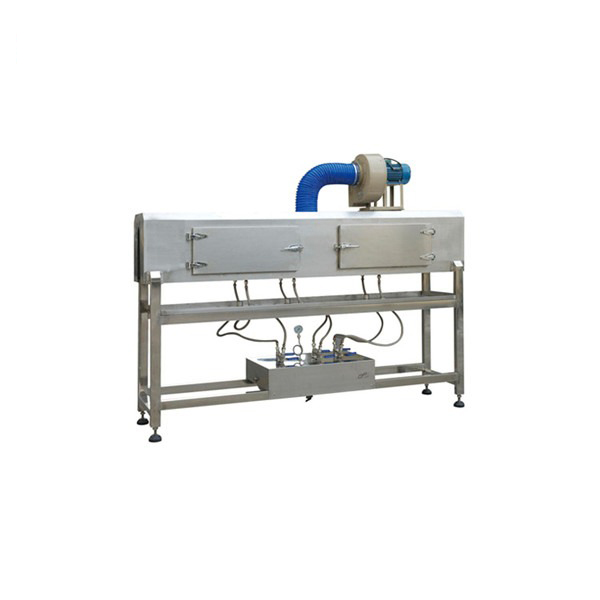

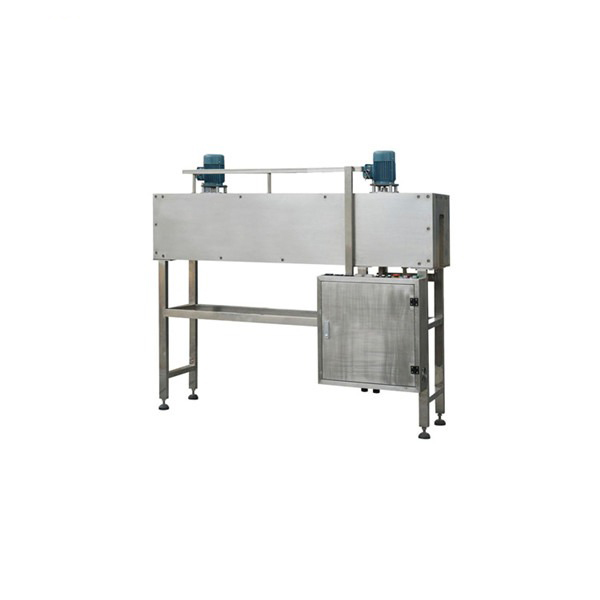

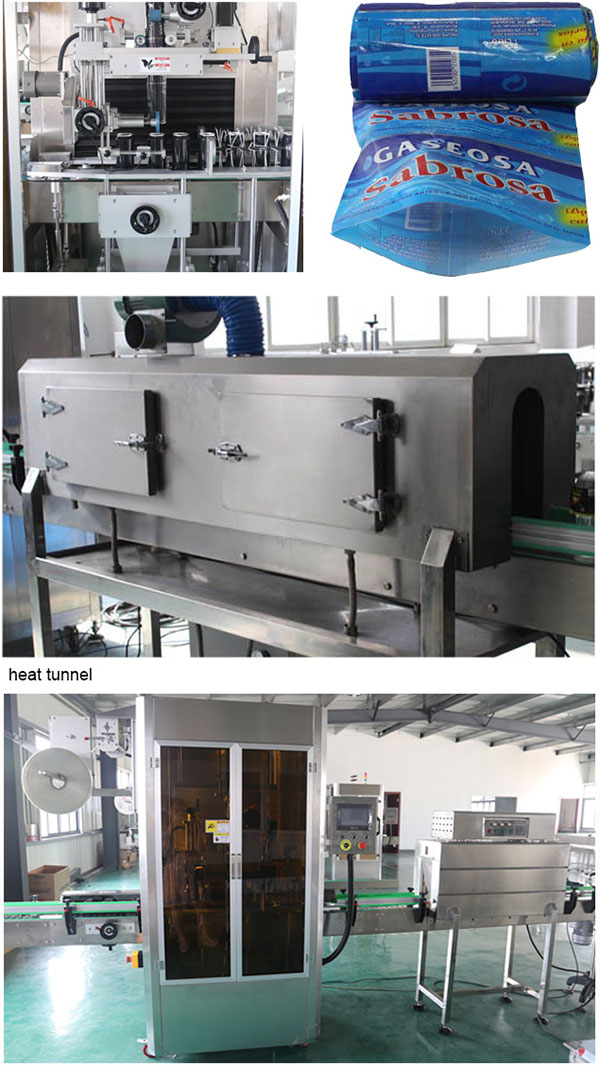

Steam shrinking tunnel or electrical shrinking tunnel
Panasonice motor and driver
Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably

Driving unit:

Synchronized transmission and drive by gear with one belt. The change of transmission belt will be finished quickly. Compared to the type of traditional multilayer whose change and maintain need more than six hours, its maintenance is easy and maintain is simple, so it doesn’t influence production.

Cutter head unit:

The new style cutting knife droved by servo motor, with high speed, more stable and precise, shrinks perfectively.Synchronous locating device enables the tolerable error to1mm.Unit cutter head plane design in China which applies to the container of D30mm—D130mm.You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you do not need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.

Label feeding unit:

Single material shelf with reasonable height in order to make it convenient to install label. It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label. It will stop automatically and give alarm light and also display on the touch screen.

Clean down unit:

Adopt with motor coordinating with double circular arc synchronous belt makes clean down plastic core-rubber-tires synchronously and ensures the label casting stably.

Bottle carrying system:

Adopted with mechanical transmission to drive the positioning belt on both sides. While changing the whole bottle carrying unit, the down and up, width are all controlled by one hand wheel aiming to synchronously and swiftly adjust.

Machine head up and down unit:

It adopts motor to up and down which enable the operation more convenient.

Electrical Configuration

It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.

Highly effective and stable production speed: 100 bottles/minute (standard bottle).
Suitable bottle shapes: round bottle, square bottle, elliptic bottle, top of bottle and body of bottle.
Applied to different kinds of plastic bottles, glass bottles, PVC, PET, PS, steel tins, etc for food, beverage, cleaning, medicine and liquor.
A unique synchronous cutting base does not require changing within the range of specification. If the specification needs changing, it can be done within two minutes.
A unique reciprocating cutting tool of smooth movement and prolonged use life.
Simplified central post positioning, easy change for specification and easy operation.

Shrink sleeve labels allow package designers  to creat distinct brand identities, while maximizing the space for graphics, text, ingredients lists, UPC codes, and nutritional information. And, when the sleeve is extended over the cap with a horizontal perforation, product tamper evidence is added at minimal additional cost.

VKPAK industry-leading shrink sleeve labelers have a successful multi-decade track record, decorating everything from foods, beverages, personal products, confectionery products, vitamins, water flavorings and beer cans, to pens, lighters, rolls of tape, and more – virtually any type of rigid consumer product.
